Math PDF OCR Benchmark: Why Gemini Flash Beats Mathpix

December 31, 2025 (Updated January 1, 2026) • 10 min read

TL;DR

Gemini 3 Flash costs $0.004/page vs Mathpix's $0.025/page (6x cheaper) and produces more accurate output for mathematical content. Mathpix made critical semantic errors like reading "5" as "$\overline{0}$" that would break mathematical datasets.

Update (Jan 2026): We tested Grok 4.1 Fast—it's even cheaper but completely hallucinates content instead of reading pages. Only 1-4% similarity with actual page content.

We recently needed to digitize mathematical content from classic textbooks, specifically Problems and Theorems in Analysis I by Pólya and Szegö. The natural choice was Mathpix, the specialized OCR service for STEM content. But before committing to processing hundreds of pages, we decided to benchmark it against modern LLM alternatives.

The results were surprising.

Key Finding

Mathpix's specialized OCR produced critical semantic errors that would break mathematical meaning, while cheaper LLM alternatives produced correct output.

The Test Setup

We tested pages 20-30 from the Pólya-Szegö book—two-column mathematical text with formulas, Greek letters, and subscripts. We compared:

Model	Cost/Page	Latency	vs Mathpix
Gemini 3 Flash	$0.0044	8.5s	6x cheaper
Gemini 2.5 Flash	$0.0069	9.4s	3.6x cheaper
Mathpix	$0.0250	N/A	baseline
GPT-5.2	$0.0353	56s	1.4x more
Claude Opus 4.5	$0.1108	14s	4.4x more
Grok 4.1 Fast	$0.0006	~0.3s	HALLUCINATES

The Errors That Break Everything

Here's what Mathpix produced for Problem 5:

Mathpix Output (WRONG):

weights of $1,1,2, \overline{0}, 10,10,20,50$ grams

Correct (LLM Output):

weights of 1, 1, 2, 5, 10, 10, 20, 50 grams

The digit 5 was misread as \overline{0} (zero with overline)—a completely different mathematical concept! This would make the problem unsolvable since the weights no longer sum correctly.

More Errors We Found

Original	Mathpix Read As	Impact
5	$\overline{0}$	Integer → Complex notation
$\varepsilon_8$	$\varepsilon_S$	Subscript 8 → Letter S
$\zeta$	$\varsigma$	Zeta → Final sigma

And the multi-column layout? Completely garbled:

15. A set of y that is a possers scales are used,
16. Write (1-1

Find the general
17. Consider $=1$ -

What is the stast

This is essentially word salad.

Visual Comparison

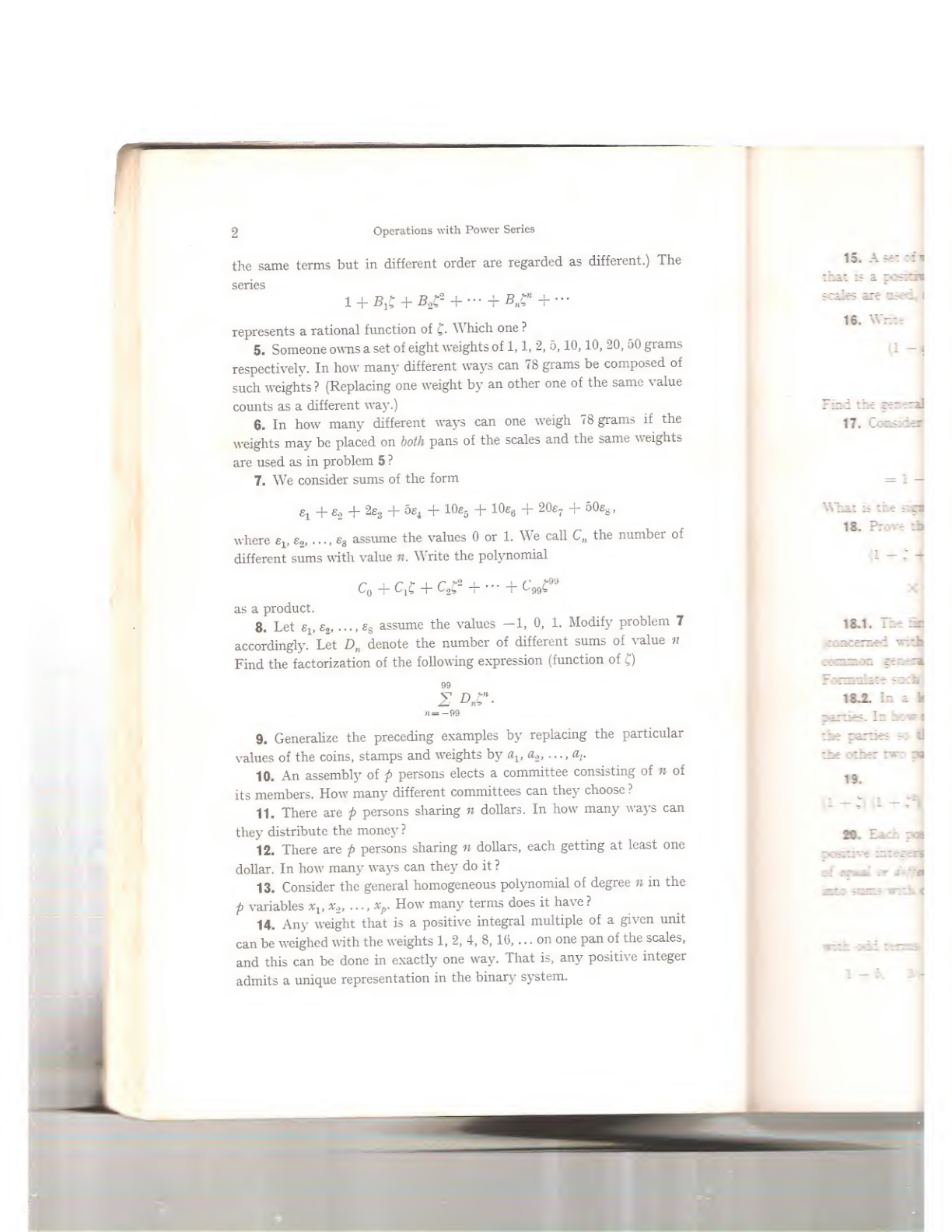

Here's the original PDF page we tested:

Original PDF page from Pólya-Szegö showing two-column mathematical text

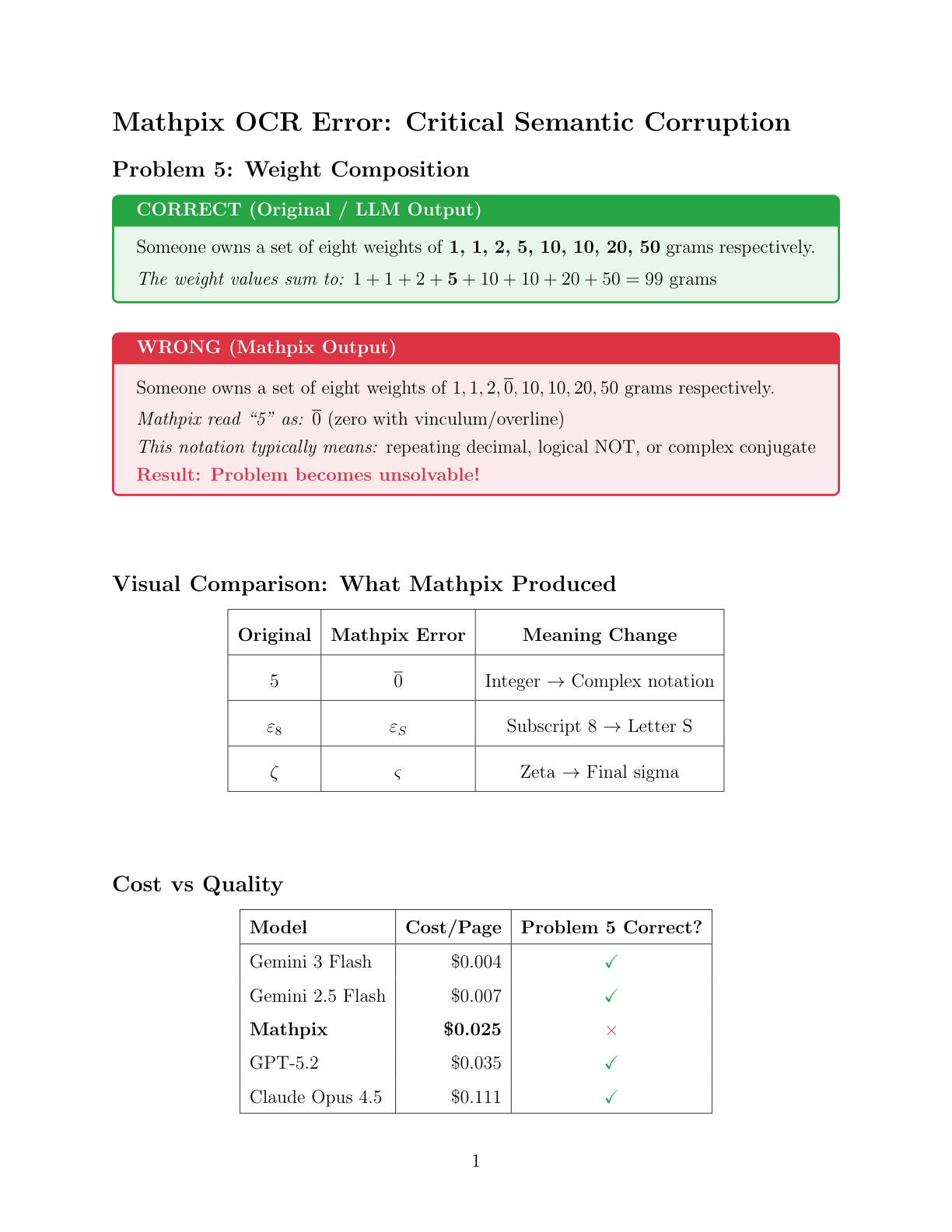

And here's our rendered comparison of what each model produced:

Comparison chart showing Mathpix errors vs correct LLM output

Update: Grok's Vision Model Hallucinates

Added January 1, 2026

We also tested Grok 4.1 Fast (x.ai's latest model) for OCR. At first glance, it seemed promising—even cheaper than Gemini at roughly $0.0006/page. But when we compared output quality, we discovered something alarming.

Grok doesn't OCR—it hallucinates.
Page-by-page similarity between Grok and Gemini output was only 1-4%. Grok generates plausible-looking mathematical LaTeX that has no relation to the actual page content.

Here's a concrete example from page 100:

Aspect	Gemini (Correct)	Grok (Hallucinated)
Page header	"Some Properties of Real Functions"	"Assume Properties of Real Functions on ℝ"
Problem numbers	121, 122, 122.1	1, 2, 3, 3.1, 3.2, 4
Content	Actual Pólya-Szegö problems	Generic textbook exercises

Grok produced 857,000 characters of output (vs Gemini's 432,000)—more verbose, but fictional. It extracted only 10 problems vs Gemini's 244, because the content it generated didn't follow the book's structure.

This is consistent with reports of Grok 4 Heavy overpromising and underdelivering. The vision model appears to understand it's looking at a math textbook page, then generates what it thinks should be there rather than reading what's actually present.

Bottom Line on Grok

Do not use Grok for OCR. It will confidently produce LaTeX that looks correct but contains entirely fabricated content. This makes it worse than useless—you can't even detect the errors without comparing to ground truth.

The Downstream Impact

We discovered these errors while building a pipeline to evaluate DeepSeek's mathematical reasoning against the book's solutions. The Mathpix errors propagated directly into our Lean formalization:

/-
Polya-Szego Problem 5
Original problem:
Someone owns a set of eight weights of $1,1,2, \overline{0}, 10,10,20,50$ grams...
-/

The corrupted input would have poisoned any ML training data built from this source.

Recommendations

For Budget Projects
Gemini 3 Flash @ $0.004/page
6x cheaper, better accuracy

For Quality Focus
GPT-5.2 @ $0.035/page
Best LaTeX structure

Conclusion

The era of specialized OCR services for mathematical content may be ending. General-purpose LLMs now provide:

Better accuracy – No critical semantic errors
Lower cost – 6x cheaper with Gemini Flash
Better multi-column handling – LLMs understand document structure
Flexibility – Same API for OCR, analysis, and generation

For anyone building mathematical datasets or digitizing academic content, we recommend switching from Mathpix to LLM-based OCR. You would think they would at least use an LLM as a pre-pass...

Test book: G. Pólya & G. Szegö, Problems and Theorems in Analysis I (Springer, 1972)

Benchmark code and full results available on request.
